Syringe, Vial and Cartridge Filling System – FSM

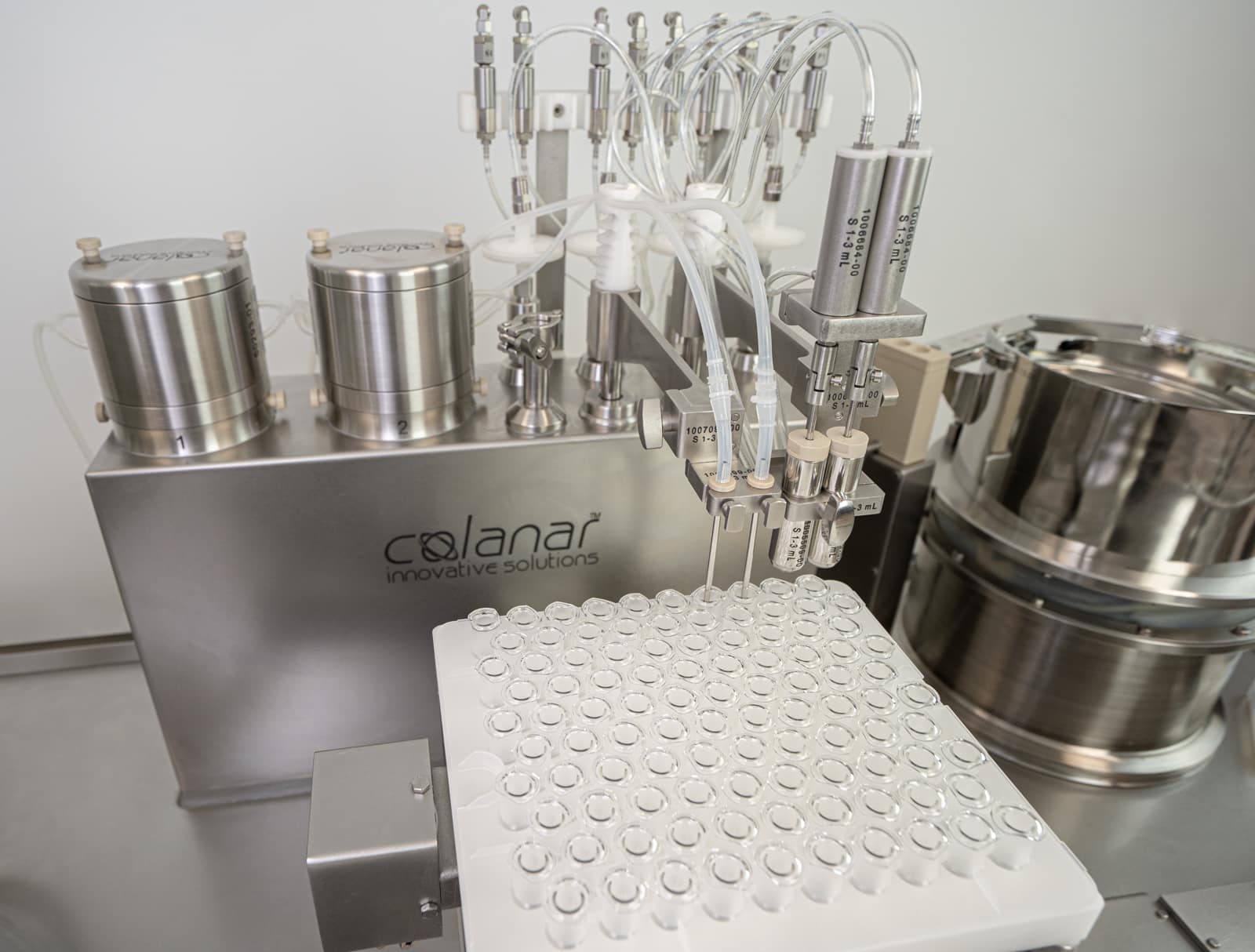

This system has been developed for the filling and vacuum stopper placement of pre-sterilized nested vials, cartridges and syringes. The FSM is suitable for clinical trials and small batches where flexibility, high accuracy, and short change over times are essential. Both high accuracy rotary piston pumps and peristaltic filling systems for single use applications are available. Each module features a state of the art control system including touch screen HMI, PLC, and servo drives.
Technical Data
Output
up to 20 / min
Range
0.5 to 20 ml syringes
2 to 50 ml nested vials
2 to 20 ml nested cartridges
Finish
Stainless steel and plastics
Weight
Approx. 100 kg (220 lbs)
Dimensions
1000 x 600 x 850 mm
Benefits and Features
- Filling system for pre-sterilized nested syringes, vials and cartridges
- High dosing accuracy of FSD rotary piston pumps or FSP peristaltic pumps
- Bottom-up vacuum filling station
- All stainless steel and plastics exterior
- All movements controlled by Servo drives
- PLC controls for each module and touch screen HMI operation
- Sturdy and reliable all stainless steel construction
